4S-5" AiO2204 2300KV (2023-2024)

By scirocco on Jan 07, 2023

10  325  1

Many years I had some "old school" new motors tried to sell them very low price 3-4euro / piece but nobody wants them!
This time 3euro? Not possible to buy even a very good brushed motors!!
Better to build one 5" toothpick light drone from this light 21g 2204 motors!
I hope this setup can be under 200gramm and will use 4S 850mah (102g)
Summ can be under 300gramm??

I will see it.....

Frame: DIY YQ5 5inch 200mm Wheelbase Frame ​(40g)
FC: JHEMCU GHF411AIO-BMI 40A F411 Flight Controller BLHELIS 40A 4in1 ESC 2-6S
Canopy: ShenStar - 3D Printed Material TPU Camera Mount with 25.5x25.5mm
VTX: Happymodel Upgraded VTX 5.8G 40CH 25mW~200mW
Propeller: KingKong 5040 3blade, Gemfan prop LR 5126 2 Blade
Motor: 3-4S 2204/2300KV (21g)
Camera: RunCam Nano 2

Receiver:
Until 2023 Xm+
From 2024 ELRS

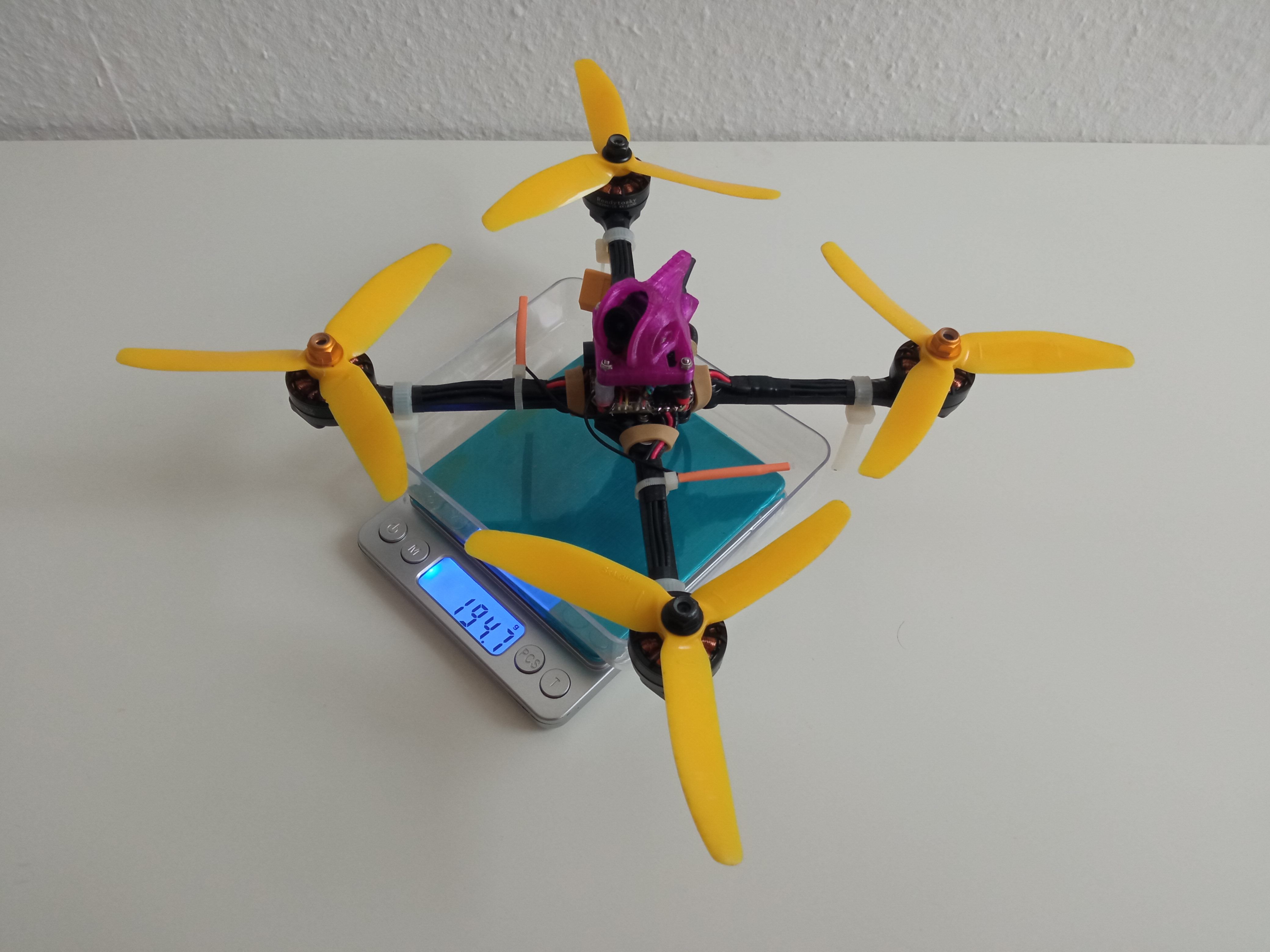

Weight: 195g

Battery:
Turnigy Bolt HV 4S 850mah (102g)
Turnigy Bolt HV 4S 1000mah (121g)

Summ weight: around 297-317g
Fly time: 5+minutes

Photos

Part List

Frame

YQ5 – cadre d'empattement de 5 pouces, 200mm, Support d'hélice de 5 pouces, 3 6S 30 60A, moteur 2004 2306, pour Drone à cure (3 builds)
Fr.aliexpress.com
$9.53

Flight Controller

Jhemcu – Contrôleur De Vol Blhelis Ghf411aio-icm 40a F411 4 En 1 Esc 2-6s Pour Drones Conduits Avec Cure-dents Fpv - Pièces (13 builds)
Fr.aliexpress.com
$59.63

Motors

4 x 1 stks 2204 2300KV CW CCW Borstelloze Motor Mini 200 230 250 MM Quadcopter 250 (3 builds)
Nl.aliexpress.com
$40.24

Propellers

Gemfan prop LR 5126 Durable 2 Blade 2mm&M5 (Adapter) 2 pairs - Whisky (3 builds)
Fpvgarage.eu
$890.00

Propellers

Kingkong 5040 – hélices 3 lames couleur unique, 5x4x3, 10 paires, pour FPV Quadcopter, drone RC, Kit de cadre de course (5 builds)
Fr.aliexpress.com
$14.07

FPV Camera

RunCam Character2 Nano2 700TVL 1/3 (5 builds)
Fr.aliexpress.com
$21.79

FPV Transmitter

VTX commutable pour RC FPV Racing Drone Quadcopter Parts Accs, Mod Ymodel ature ula7 Part Upgrade, 5.8G 40CH, 25mW ~ 200mW (18 builds)
Fr.aliexpress.com
$16.00

Receiver

FrSky XM Plus Micro D16 SBUS Full Range Mini RC Receiver Up to 16CH for RC FPV Racing Drone (1149 builds)
Banggood.com
$20.99

Batteries

Turnigy Bolt 850mAh 4S 15.2V 65~130C High Voltage Lipoly Pack (LiHV) (3 builds)
Hobbyking.com
$18.41

Radio

Jjrc H31 Rc Quadcopter Onderdelen Afstandsbediening
Nl.aliexpress.com
$9.76

Radio

RadioMaster Pocket 2.4GHz 16CH ELRS/CC2500 Hall Gimbals EdgeTX System Radio Controller Built-in LED Lights Transmitter for FPV R
Banggood.com
$67.99

Radio

FrSky ACCST Taranis Q X7 Transmitter 2.4G 16CH Mode 2 White Black International Version for RC Drone (263 builds)
Banggood.com
$139.99

Radio

Jumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS Module Radio Controller Hall Sensor Gimbals EdgeTX/OpenTX JP4IN1 Radio
Aliexpress.com
$107.57

Goggles

Skyzone Cobra X V2 1280x720 4.3inch Diversity 5.8ghz 48ch Rapidmix Receiver Head Tracker Dvr Fpv Goggles For Fpv Drone - Parts &
Aliexpress.com
$345.71

Goggles

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery (7 builds)
Banggood.com
$119.99

3D Printed

Support de caméra en TPU imprimé en 3D, cadre cure dents, FPV Racing RC Drone, Quadcopter Mod Ymodel Crux3 Nano FPV (2 builds)
Fr.aliexpress.com
$2.84

Radio Module

RadioMaster Ranger Nano 2.4GHz ELRS Module
Aliexpress.com
$54.99

Battery Charger

ISDT Q6 Nano BattGo 200W 8A Lipo Battery Charger Colorful Pocket for 1-6S Lipo Battery (4 builds)
Banggood.com
$32.99

Soldering Iron

TOP Atten Electric Soldering Iron 220V With Digital Liquid Crystal Display Temperature Adjustable Soldering Iron Soldering Iron (3 builds)
Aliexpress.com
$28.61

Accessories

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2 (3 builds)
Shop.prodrone.pl
$85.00

Accessories

Antenna Pro Pagoda 2.1 Long (5 builds)
Shop.prodrone.pl
$43.00
Show stores (7)
